[In Stock] Orbit65

SPEC

- Typing angle 7.0°
- Front height: 17mm
- Weight : 1.5kg with Aluminium Bottom Case
                 2.5kg with Brass/Copper Bottom Case
- Mounting style: Silicon pin/ Tadpole ( 70A as default, 3 hardness options)
- Screwless exterior design (detachable silicon feet)
- PCB: Inhouse design with USB-C daughterboard - configurable with QMK/VIA, hotswap, and solder option available.
- A matching carrying case included

Multiple bottom case designs:
- Aluminium Top Case

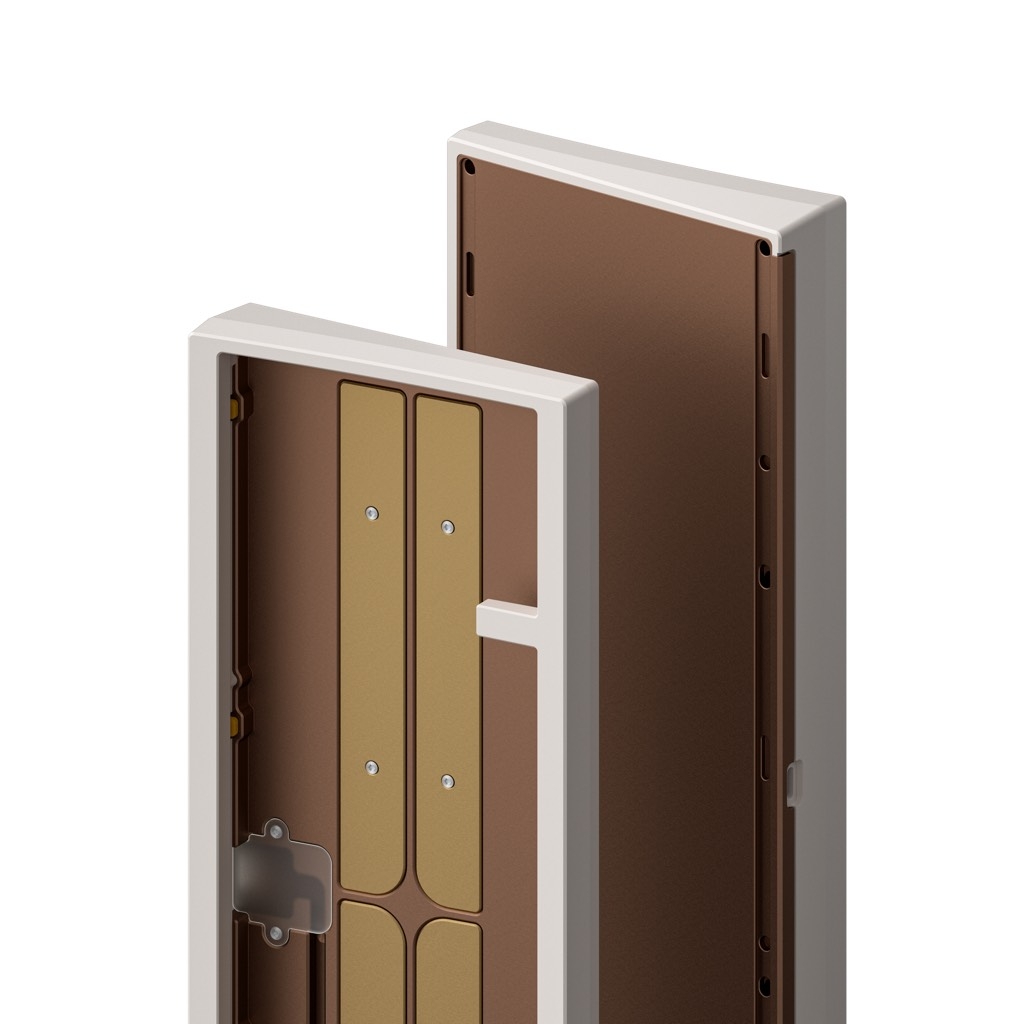

- Anodised/ E-coated  Aluminium Bottom Case with 4 internal clear E-coated brass weights
- Full PVD Aluminium Bottom Case with 4 internal clear E-coated brass weights
- Raw Finish Aluminium Bottom Case with 4 internal clear E-coated brass weights
- Full Brass Bottom Case with clear E-coat finish
- Full Copper Bottom Case with clear E-coat finish

CONTENT

1 x Top Enclosure
1 x Bottom Case
1 x Full Aluminium Plate
1 x PCB
2 x 2 Custom Moulded Machina Feet (Black and Grey)
8 x Custom Moulded Machina Tadpole (70A)
12 x M2x5 Screws
4 x M2x5 Countersunk Screws (Aluminium bottom only)
4 x M2x3 Countersunk Screws (Aluminium bottom only)
2 x M2x5 Countersunk Screws
1 x PC Daughterboard Cover
1 x Daughterboard with JST Connection Cable
1 x Compatible Screwdriver
1 x Carry Case
* Foam is not included in the kit.
